Visual and Audible Alarm Systems:
CWB-ATEX Flashing Alarms
|
|
Dear reader,
Welcome to another issue of the Pfannenberg e-Newsletter. Today we would like to introduce the Pfannenberg flashing alarms of the CWB-ATEX series. These flashing alarms are especially designed to provide
visual alarm signals within atmospheres containing explosive gases or combustible dusts hence working enviroments categorized as Ex zones 2G, 2D, 3G and 3D (previsouly zone 1 and zone 2, zone 21 and zone 22).
 |
 |

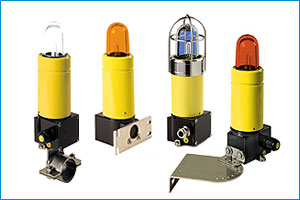

Various mouting options combined with an excellent power rating
The various mounting options and the excellent durability of the product, after 8.000.000 flashes still 70% light emission, are providing a broad range of applications for the CWB-ATEX.
|
 |
- Pipe clamp, ceiling or wall-mounting bracket, mouting plate, wire guard
- Available globe colours: clear, red, blue, green, signal yellow and orange
- Flashing energy 5 Joules
- Flashing frequency 1 Hz
- Integrated Ex e service compartment
|
|
Click here for additional information. |
|
Excellent protection rating and rugged design

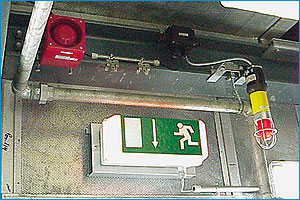

The protection rating IP 66 and the rugged design combine into an extremely reliable product for roughest working conditions. The flashing alarms are equipped with a saltwater-proof aluminium enclosure and a polycarbonate globe hence are especially designed for applications in chemical or petrochemical plants and on offshore facilities.
|
 |
- Saltwater-proof aluminium enclosure combined with a polycarbonate globe
- for use in chemical or petrochemical plants and on offshore facilities
- certified for categories 2G, 2D, 3G und 3D (previously zone 1 and zone 2, zone 21 and
zone 22)
|
|
Click here for additional information. |
|
|
|
|
Benefit from our core competency to increase the availability of your machines and at the same time reduce
production costs by decreasing the service and maintenance cycles.
|
|
|
